Product Details

Humminbird Helix 5 DI SI GPS DualBeam Plus Fishfinder

Art.No.: 410230-1M
Humminbird Helix 5 DI SI GPS DualBeam Plus Fishfinder
Humminbird Helix 5 DI SI GPS DualBeam Plus Fishfinder

No ratings.
Humminbird
Manufacturer: Humminbird
This item is not in stock and must be reordered.
Reduced from 689,00 € (Our normal price.)
now only 578,99 € incl. VAT, plus Shipping
Free shipping in Germany
(Weight: 1620 g)
(578,99 €/St)

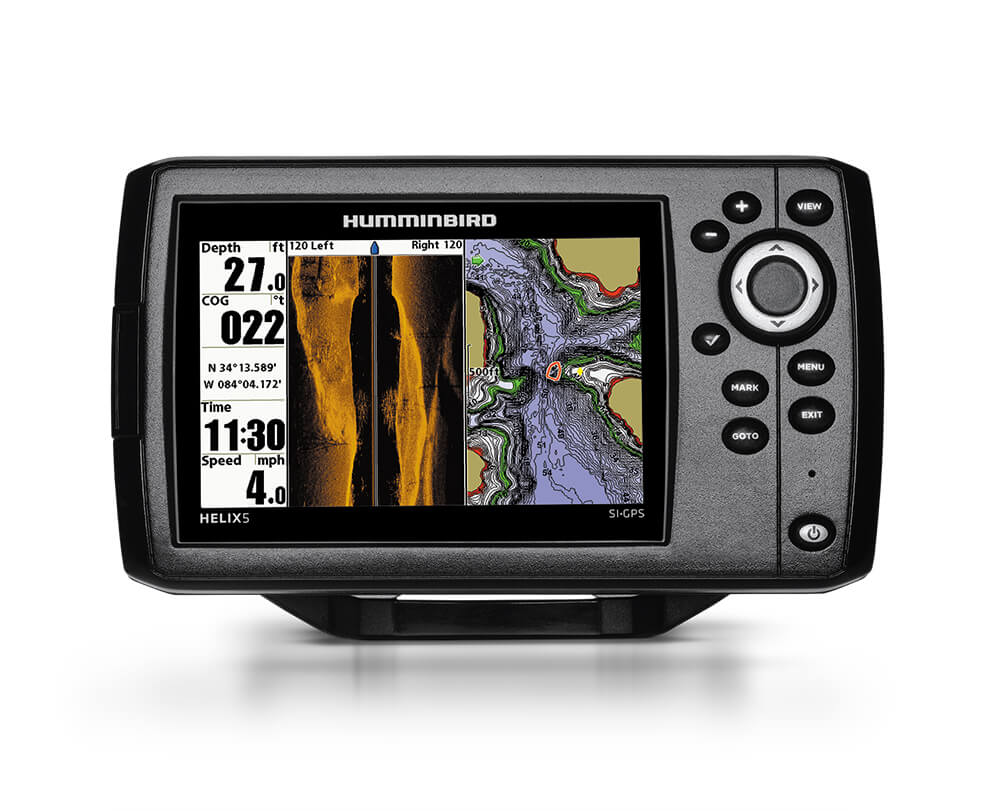

Humminbird Helix 5 DI SI GPS DualBeam Plus Fishfinder

The HELIX 5 CHIRP SI GPS G2 features ​a brilliant 800H x 480V, 5" 256 color display with backlight. Side Imaging, Down Imaging and DualBeam PLUS sonar with 4000 watts PTP power output, Precision Internal GPS Chartplotting with a micro SD slot for optional maps or saving waypoints along with a gimbal mounting system. Maximize your angling experience with the Humminbird HELIX 5 CHIRP SI GPS G2 fishfinder system.

Features

  • Model Options: HELIX 5 CHIRP SI GPS G2
  • Interface: Keypad Control (X-Press Menu System)
  • Display Size: 12,7 cm - 5" diagonal
  • Display Pixel Matrix: 800 x 480
  • Display Type: Color TFT
  • Display Colors: 256
  • Sonar Standard: CHIRP, Side Imaging, Down Imaging, DualBeam PLUS
  • Depths Capability: 30 m - 100 ft (SI), 457 m - 1500 ft (762 m - 2500 ft with optional transducer)
  • Standard Sonar Coverage: 20°, 60° & (2) 86° @ -10db (Total of 180°)
  • Standard Sonar Frequency: 83/200/455 kHz
  • Target Separation: 2.5" - 6,3 cm
  • Power Output: 4.000 Watts (Peak-to-Peak); 500Watts (RMS)
  • Power Input, Power Draw: 10-20 VDC, 615 mA
  • Temperature: Built in Transducer
  • IPX: IPX5
  • Transducer: XNT 9 SI 180 T
  • Transducer Mounting: Transom
  • Backlight LED
  • Selective Fish ID+
  • Large Digits View
  • SwitchFire Sonar
  • HumminbirdPC
  • Split Screen Zoom
  • Split Screen Bottom Lock
  • Wide/Narrow Cone Split Screen
  • Custom View Selections
  • Custom Digital Readout Selection
  • Temperature Alarm
  • Freeze Frame
  • Real Time Sonar

Equal to Helix 5 Sonar, but

  • internal GPS-Receiver
  • GPS Trackplotting
  • GPS Chartplotting
  • Humminbird UniMap
  • Waypoints, Routes, Tracks/Points: 2.500, 45, 50/20.000
  • Screen Snap Shot to Memory Card
  • Sonar Recording
  • Triplog
  • Selectable Display Colors

Cartographie & GPS

  • incl.: GPS Receiver, GPS Trackplotting, GPS Chartplotting, Humminbird UniMap
  • Waypoints, Routes, Tracks/Points: 2.500, 45, 50/20.000
  • optional: Humminbird LakeMaster, Humminbird AutoChart Pro, Humminbird AutoChart, Navionics Gold/HotMaps

Supplies

  • Console
  • Control Head
  • Voltage Cable
  • Operations Manual
  • Transducer XNT 9 SI 180 T
  • internal GPS-Receiver


Like almost every electronic device, even a sonar device emits electromagnetic radiation and, in turn, is subject to the radiation of other devices in the environment. In order to ensure that your sonar device runs interference-free, we recommend the use of a cable with a noise filter, such as the Humminbird PC 11.

Specification
Cartography yes
GPS integrated
Display Type TFT Color display
Display Size 12,7 cm (5")
Sonartype CHIRP / Side Imaging / Down Imaging / DualBeam Plus
Series HELIX
Depth Capability 457m - 1.500ft
Display Colors 256
Display Pixel Matrix 800 x 480
