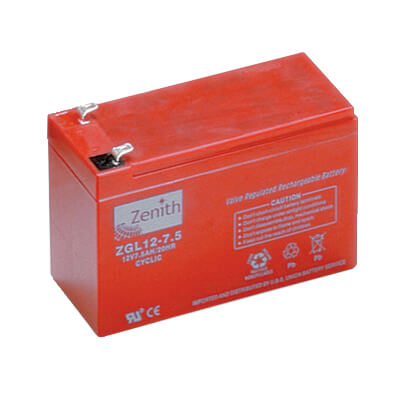

Zenith AGM Battery 12V for echo sounders

Art.No.: Zen-AGM-9011XX
Zenith AGM Battery 12V for echo sounders
Small, light AGM battery particularly for echo sounders and lights.

No ratings.
Zenith
Manufacturer: Zenith
Ready for shipping
from 31,90 € incl. VAT, plus Shipping
Variant Selection of Zenith AGM Battery 12V for echo sounders
Zenith AGM Battery 12V for echo sounders 12V 7Ah Zenith AGM Battery 12V for echo sounders 12V 7Ah
Art.No.: Zen-901149  in stock
31,90 €*
(31,90 €/Stück)
Zenith AGM Battery 12V for echo sounders 12V 8,5Ah Zenith AGM Battery 12V for echo sounders 12V 8,5Ah
Art.No.: Zen-901128  in stock
33,90 €*
(33,90 €/Stück)
Zenith AGM Battery 12V for echo sounders

Due to their small size (smaller than a bait box) and their low weight (less than 3kg), these AGM batteries are particularly suitable for use with small-scale equipment such as echosounders or boat lights. The comparatively low capacity of 7 Ah or 8.5 Ah is still sufficient to use echosounders for many hours at full power. The Humminbird Helix 7 CHIRP SI GPS, for example, has a power consumption of 1.2 A. With the 8.5 Ah AGM battery, this sonar could be used for up to 7 hours.

Every Zenith battery is manufactured and individually tested while using the latest and most innovative techniques.
Zenith batteries are manufactured with factory-made, thick-meshed flat plates, that take huge amounts of paste. Due to this technique the battery provides a very high cold testing current and an excellent power restoring after deep discharges. The required electrolyte, that steadily provides the optimal capability, gets absorbed into fibre-glass separators between the positive and negative plates and even prevents the battery from leaking. The poles are casted in epoxy resin and therefore 100% tightly closed.
Zenith batteries are equipped with safety valves against overpressure that open between 0.07 kPa and 0.43 kPa.

  • Maintenance-free, green and safe energy
  • Maximal capacity, maximal autonomy
  • Complete product line
  • Premium quality - extremely robust and reliable
  • Batteries conform the EU and US standards
  • Minimal self-drain on longer down times

Unlike lithium batteries, AGM batteries are easy to connect in series and can therefore be perfectly adapted to your needs. To increase the capacity (Ah), simply connect the 2 negative (--) and positive (++) poles. As a result, for example, two 105 Ah (12V) AGM batteries can be combined to form a "210 Ah" (12V) battery. The total voltage is then tapped at the positive pole of one and the negative pole of the other battery.
On the other hand, if you need a higher voltage, connect one positive pole to the negative pole (+-) of the other battery, and then two 105 Ah (12V) batteries will form a 105 Ah (24V) battery. The decrease of the total voltage takes place at the free pole of each battery.
In both cases, only batteries of the same capacity and voltage should be used because batteries tend to align. So a "worse" battery would worsen the conditions of a "better" one.

Please mind when buying a battery resp. a matching charger, that the battery's ampere-hour number (Ah) should be approx. 10 times higher than the charger's power to ensure that one charging cycle won't take much longer than 8 - 10 hours.



Specification
Manufacturer Zenith
Product AGM Battery
Color Red
Voltage 12 V
